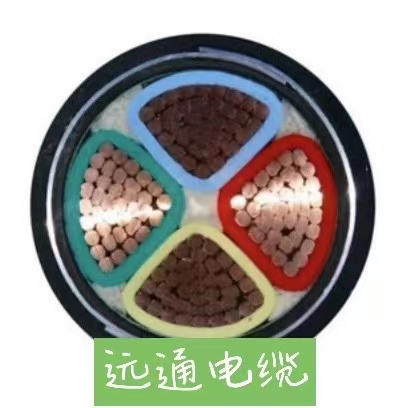

- 商品名稱：0.6/1KV電力電纜
- 添加時間：2023-03-22 09:34:51
- 電 話：13955097078
郵 箱：ahytcable@163.com
介紹：
| 產品詳細介紹 |
| 標 準：本產品按標準GB12706-2002或******電工委員會IEC502-1994標準制造型 號：VV，VLV一銅（鋁）芯聚氯乙烯絕緣、聚氯乙烯護套電力電纜VV，VLV一銅（鋁）芯聚氯乙烯絕緣、聚乙烯護套電力電纜用 途：供固定敷設在額定交流電壓UO/U為0．6/1KV及以下的室內、架空、電纜溝道、管道內的輸配電力線路用。使用特性：1、電纜敷設時的環境溫度不低于0oC，彎曲半徑應不小電纜外徑的10倍。2、電纜導體的長期高溫度不超過70oC。3、短路時（長持續時間不超過5S）電纜導體的高溫度不超過160oC。產品規格：1芯：1．5--630mm2芯：2*1．5--2*185mm3芯：3*1．5-3*300mm4 芯：4*4-4*300mm3+1芯：3*4+1*2.5-3*300+1*150mm3+2 芯：3*4+1*2.5-3*300+2*150mm4+1芯：4*4+1*2.5-4*300+1*150mmVV,VLV,VY,VLY |
| 標稱截面 mm2 | 線芯結構 ho/mm | 絕緣標稱厚度 mm | 護套標稱厚度mm | 計算外徑 mm | 環境溫度25°C 允許空氣中敷設截流量[A] | 環境溫度25°C 允許截流量埋地土壤熾熱阻系數g=80(°C厘米/瓦) [A] | 成品近似重量 kg/km | |||
| 銅芯 Cu | 鋁芯Al | 銅芯 Cu | 鋁芯Al | 銅芯 Cu | 鋁芯Al | |||||
| 1.5 | 1/1.38 | 0.8 | 1.8 | 6.6 | 24 | - | 31 | - | 58 | - |
| 2.5 | 1/1.78 | 0.8 | 1.8 | 7.0 | 32 | 25 | 45 | 35 | 71 | 56 |
| 4.0 | 1/2.25 | 1.0 | 1.8 | 7.9 | 45 | 34 | 61 | 47 | 97 | 73 |
| 6.0 | 1/2.76 | 1.0 | 1.8 | 8.4 | 56 | 43 | 77 | 59 | 121 | 84 |
| 10 | 7/1.35 | 1.0 | 1.8 | 9.7 | 80 | 61 | 103 | 80 | 177 | 111 |
| 16 | 7/1.70 | 1.0 | 1.8 | 10.7 | 106 | 83 | 138 | 106 | 239 | 139 |
| 25 | 7/2.14 | 1.2 | 1.8 | 12.4 | 143 | 111 | 183 | 140 | 349 | 190 |
| 35 | 7/2.52 | 1.2 | 1.8 | 13.6 | 175 | 133 | 221 | 170 | 451 | 232 |
| 50 | 19/1.78 | 1.4 | 1.8 | 15.3 | 223 | 170 | 272 | 210 | 624 | 309 |
| 70 | 19/2.14 | 1.4 | 1.8 | 17.1 | 265 | 207 | 333 | 256 | 821 | 384 |
| 95 | 19/2.52 | 1.6 | 1.8 | 19.4 | 329 | 254 | 392 | 302 | 1085 | 491 |
| 120 | 37/2.03 | 1.6 | 1.8 | 21.0 | 382 | 297 | 451 | 348 | 1338 | 589 |
| 150 | 37/2.25 | 1.8 | 1.8 | 23.0 | 445 | 339 | 516 | 392 | 1642 | 706 |
| 185 | 37/2.52 | 2.0 | 1.8 | 25.2 | 519 | 392 | 572 | 436 | 2032 | 858 |
| 240 | 61/2.25 | 2.2 | 1.9 | 28.5 | 609 | 472 | 667 | 516 | 2605 | 1091 |
| 300 | 61/2.52 | 2.4 | 2.0 | 31.5 | 700 | 541 | 721 | 557 | 3238 | 1340 |
| 400 | 61/2.88 | 2.6 | 2.1 | 34.7 | 832 | 641 | 838 | 647 | 4173 | 1693 |
| 500 | 61/3.15 | 2.8 | 2.2 | 39.0 | 970 | 727 | 955 | 743 | 5194 | 2085 |
| 630 | 91/2.97 | 2.8 | 2.3 | 42.9 | 1124 | 875 | 1039 | 849 | 6475 | 2542 |
| 2x1.5 | 2x1/1.38 | 0.8 | 1.8 | 10.4 | 20 | - | 26 | - | 120 | - |
| 2x2.5 | 2x1/1.78 | 0.8 | 1.8 | 11.2 | 28 | 21 | 35 | 27 | 150 | 119 |
| 2x4.0 | 2x1/2.25 | 1.0 | 1.8 | 12.9 | 36 | 29 | 45 | 35 | 206 | 151 |
| 2x6.0 | 2x1/2.76 | 1.0 | 1.8 | 14.0 | 47 | 36 | 57 | 48 | 255 | 178 |
| 2x10 | 2x7/1.35 | 1.0 | 1.8 | 16.5 | 66 | 51 | 76 | 59 | 361 | 235 |
| 2x16 | 2x7/1.70 | 1.0 | 1.8 | 18.6 | 89 | 69 | 101 | 77 | 501 | 300 |
| 2x25 | 2x7/2.14 | 1.2 | 1.8 | 17.2 | 117 | 91 | 131 | 101 | 721 | 375 |
| 2x35 | 2x7/2.52 | 1.2 | 1.8 | 18.6 | 143 | 111 | 156 | 120 | 903 | 450 |
| 2x50 | 2x10/2.55 | 1.4 | 1.8 | 22.0 | 180 | 138 | 192 | 148 | 1255 | 603 |
| 2x70 | 2x14/2.55 | 1.4 | 1.8 | 24.2 | 217 | 170 | 235 | 180 | 1680 | 764 |
| 2x95 | 2x19/2.55 | 1.6 | 1.8 | 27.2 | 238 | 182 | 280 | 216 | 2215 | 980 |
| 2x120 | 2x24/2.55 | 1.6 | 1.9 | 29.6 | 273 | 211 | 320 | 247 | 2744 | 1184 |
| 2x150 | 2x30/2.55 | 1.8 | 2.0 | 32.6 | 315 | 242 | 365 | 280 | 3396 | 1448 |
| 2x185 | 2x37/2.55 | 2.0 | 2.1 | 35.8 | 350 | 269 | 405 | 311 | 4161 | 1762 |
| 3x1.5 | 3x1/1.38 | 0.8 | 1.8 | 10.8 | 17 | - | 22 | - | 143 | - |
| 3x2.5 | 3x1/1.78 | 0.8 | 1.8 | 11.7 | 23 | 18 | 30 | 23 | 183 | 137 |
| 3x4.0 | 3x1/2.25 | 1.0 | 1.8 | 13.6 | 31 | 24 | 39 | 30 | 254 | 181 |
| 3x6.0 | 3x1/2.76 | 1.0 | 1.8 | 14.7 | 39 | 31 | 49 | 38 | 326 | 215 |
| 3x10 | 3x7/1.35 | 1.0 | 1.8 | 17.4 | 56 | 43 | 62 | 51 | 482 | 293 |
| 3x16 | 3x7/1.70 | 1.0 | 1.8 | 19.7 | 76 | 59 | 89 | 69 | 680 | 378 |
| 3x25 | 3x7/2.14 | 1.2 | 1.8 | 20.1 | 102 | 78 | 107 | 83 | 993 | 494 |
| 3x35 | 3x7/2.52 | 1.2 | 1.8 | 22.5 | 122 | 94 | 131 | 101 | 1288 | 604 |
| 3x50 | 3x10/2.55 | 1.4 | 1.8 | 25.2 | 154 | 122 | 159 | 123 | 1812 | 829 |
| 3x70 | 3x14/2.55 | 1.4 | 1.8 | 27.8 | 191 | 148 | 195 | 150 | 2429 | 1054 |
| 3x95 | 3x19/2.55 | 1.6 | 2.0 | 31.8 | 230 | 180 | 231 | 178 | 3246 | 1392 |
| 3x120 | 3x24/2.55 | 1.6 | 2.1 | 34.8 | 270 | 207 | 262 | 201 | 4019 | 1680 |
| 3x150 | 3x30/2.55 | 1.8 | 2.2 | 38.3 | 313 | 244 | 300 | 231 | 5000 | 2077 |
| 3x185 | 3x37/2.55 | 2.0 | 2.3 | 42.2 | 360 | 281 | 339 | 262 | 6129 | 2532 |
| 3x240 | 3x48/2.55 | 2.2 | 2.5 | 47.5 | 429 | 334 | 396 | 301 | 7883 | 3221 |
| 3x300 | 3x60/2.55 | 2.4 | 2.6 | 52.2 | 477 | 376 | 451 | 355 | 9528 | 3879 |
| 4x4.0 | 4x1/2.25 | 1.0 | 1.8 | 14.7 | 28 | 22 | 38 | 29 | 328 | 229 |
| 4x6.0 | 4x1/2.76 | 1.0 | 1.8 | 15.9 | 38 | 28 | 48 | 37 | 419 | 272 |
| 4x10 | 4x7/1.35 | 1.0 | 1.8 | 19.0 | 51 | 40 | 61 | 47 | 633 | 386 |
| 4x16 | 4x7/1.70 | 1.0 | 1.8 | 21.5 | 68 | 53 | 81 | 62 | 919 | 575 |
| 4x25 | 4x7/2.14 | 1.2 | 1.8 | 22.0 | 92 | 71 | 106 | 82 | 1282 | 647 |
| 4x35 | 4x7/2.52 | 1.2 | 1.8 | 24.0 | 115 | 89 | 134 | 103 | 1699 | 811 |
| 4x50 | 4x10/2.55 | 1.4 | 1.8 | 28.0 | 144 | 111 | 163 | 125 | 2384 | 1108 |
| 4x70 | 4x14/2.55 | 1.4 | 2.0 | 31.5 | 178 | 136 | 196 | 151 | 3215 | 1433 |
| 4x95 | 4x19/2.55 | 1.6 | 2.1 | 35.9 | 218 | 168 | 234 | 181 | 4286 | 1872 |
| 4x120 | 4x24/2.55 | 1.6 | 2.2 | 39.1 | 253 | 195 | 267 | 206 | 5306 | 2245 |
| 4x150 | 4x30/2.55 | 1.8 | 2.3 | 43.0 | 297 | 228 | 301 | 231 | 6635 | 2807 |
| 4x185 | 4x37/2.55 | 2.0 | 2.5 | 48.2 | 344 | 263 | 338 | 261 | 8139 | 3431 |
| 4x240 | 4x48/2.55 | 2.2 | 2.7 | 53.6 | 406 | 310 | 390 | 300 | 10475 | 4358 |
| 4x300 | 4x60/2.55 | 2.4 | 2.9 | 59.3 | 452 | 351 | 450 | 354 | 12992 | 5361 |
| 16844 | 6620 | |||||||||
| 3x4.0+1x2.5 | 3x1/2.25+1x1/1.78 | 1.0/0.8 | 1.8 | 13.6 | 28 | 22 | 38 | 29 | 286 | 212 |
| 3x6.0+1x4.0 | 3x1/2.76+1x1/2.25 | 1.0/1.0 | 1.8 | 14.7 | 38 | 28 | 48 | 37 | 378 | 212 |
| 3x10+1x6.0 | 3x7/1.35+1x1/2.76 | 1.0/1.0 | 1.8 | 17.4 | 51 | 40 | 61 | 47 | 550 | 323 |
| 3x16+1x10 | 3x7/1.70+1x7/1.35 | 1.0/1.0 | 1.8 | 19.6 | 68 | 53 | 80 | 61 | 799 | 484 |
| 3x25+1x16 | 3x7/2.14+1x7/1.70 | 1.2/1.0 | 1.8 | 22.2 | 92 | 71 | 106 | 82 | 1197 | 600 |
| 3x35+1x16 | 3x7/2.52+1x7/1.70 | 1.2/1.0 | 1.8 | 24.0 | 115 | 89 | 130 | 101 | 1508 | 728 |
| 3x50+1x25 | 3x10/2.55+1x7/2.14 | 1.4/1.2 | 1.9 | 28.1 | 144 | 111 | 161 | 124 | 2141 | 1004 |
| 3x70+1x35 | 3x14/2.55+1x7/2.52 | 1.4/1.2 | 2.0 | 31.5 | 178 | 136 | 194 | 148 | 2890 | 1295 |
| 3x95+1x50 | 3x19/2.55+1x19/1.78 | 1.6/1.4 | 2.1 | 35.9 | 218 | 168 | 231 | 177 | 2866 | 1707 |
| 3x120+1x70 | 3x24/2.55+1x19/2.14 | 1.6/1.4 | 2.2 | 39.1 | 253 | 195 | 263 | 204 | 4852 | 2085 |
| 3x150+1x70 | 3x30/2.55+1x19/2.14 | 1.8/1.4 | 2.3 | 43.0 | 297 | 228 | 303 | 233 | 5860 | 2493 |
| 3x185+1x95 | 3x37/2.55+1x19/2.52 | 2.0/1.6 | 2.5 | 47.8 | 344 | 263 | 340 | 263 | 7299 | 3097 |
| 3x240+1x120 | 3x48/2.55+1x37/2.03 | 2.2/1.6 | 2.7 | 53.6 | 406 | 310 | 390 | 300 | 9323 | 3896 |
| 3x300+1x150 | 3x60/2.55+1x37/2.25 | 2.4/1.8 | 2.9 | 59.3 | 452 | 351 | 450 | 354 | 11328 | 4725 |
| 4x4+1x1.25 | 4x1/2.25+1x1/1.78 | 1.0/0.8 | 1.8 | 15.0 | 28 | 22 | 38 | 29 | 331 | 226 |
| 4x6+1x4 | 4x1/2.76+1x1/2.25 | 1.0/1.0 | 1.8 | 16.6 | 38 | 28 | 48 | 37 | 442 | 282 |
| 4x10+1x6 | 4x7/1.35+1x1/2.76 | 1.0/1.0 | 1.8 | 18.7 | 51 | 40 | 65 | 50 | 628 | 364 |
| 4x16+1x10 | 4x7/1.70+1x7/1.35 | 1.0/1.0 | 1.8 | 22.6 | 68 | 53 | 84 | 65 | 932 | 505 |
| 4x25+1x16 | 4x7/2.14+1x7/1.70 | 1.2/1.0 | 1.8 | 24.4 | 87 | 68 | 109 | 82 | 1413 | 689 |
| 4x35+1x16 | 4x7/2.52+1x7/1.70 | 1.2/1.0 | 1.8 | 26.4 | 116 | 89 | 140 | 107 | 1691 | 807 |
| 4x50+1x25 | 4x10/2.55+1x7/2.14 | 1.4/1.2 | 2.0 | 31.2 | 144 | 110 | 171 | 131 | 2426 | 1130 |
| 4x70+1x35 | 4x14/2.55+1x7/2.52 | 1.4/1.2 | 2.1 | 35.0 | 177 | 132 | 207 | 159 | 3268 | 1453 |
| 4x95+1x50 | 4x19/2.55+1x19/1.78 | 1.6/1.4 | 2.2 | 39.8 | 219 | 168 | 250 | 191 | 4396 | 1916 |
| 4x120+1x70 | 4x24/2.55+1x19/2.14 | 1.6/1.4 | 2.4 | 43.6 | 250 | 195 | 285 | 220 | 5582 | 2372 |
| 4x150+1x70 | 4x30/2.55+1x19/2.14 | 1.8/1.4 | 2.5 | 48.2 | 290 | 220 | 322 | 248 | 6601 | 2790 |
| 4x185+1x95 | 4x37/2.55+1x19/2.52 | 2.0/1.6 | 2.7 | 53.6 | 331 | 256 | 363 | 280 | 8288 | 3484 |
| 4x240+1x120 | 4x48/2.55+1x37/2.03 | 2.2/1.6 | 2.9 | 59.4 | 408 | 315 | 415 | 320 | 10540 | 4353 |
| 4x300+1x150 | 4x60/2.55+1x37/2.25 | 2.4/1.8 | 3.1 | 65.8 | 452 | 351 | 450 | 354 | 12879 | 5323 |
| 3x25+2x16 | 3x7/2.23+2x7/1.70 | 1.2/1.0 | 1.8 | 24.4 | 92 | 71 | 111 | 86 | 1413 | 689 |
| 3x35+2x16 | 3x7/2.52+2x7/1.70 | 1.2/1.0 | 1.8 | 26.4 | 115 | 89 | 139 | 107 | 1691 | 807 |
| 3x50+2x25 | 3x10/2.55+2x7/2.14 | 1.4/1.2 | 2.0 | 31.2 | 144 | 111 | 173 | 133 | 2426 | 1130 |
| 3x70+2x35 | 3x14/2.55+2x7/2.52 | 1.4/1.2 | 2.1 | 35.0 | 178 | 136 | 208 | 160 | 3268 | 1453 |
| 3x95+2x50 | 3x19/2.55+2x19/1.78 | 1.6/1.4 | 2.2 | 39.8 | 218 | 168 | 249 | 191 | 4396 | 1916 |
| 3x120+2x70 | 3x24/2.55+2x19/2.14 | 1.6/1.4 | 2.4 | 43.6 | 253 | 195 | 285 | 220 | 5582 | 2372 |
| 3x150+2x70 | 3x30/2.55+2x19/2.14 | 1.8/1.4 | 2.5 | 48.2 | 297 | 228 | 329 | 253 | 6601 | 2790 |
| 3x185+2x95 | 3x37/2.55+2x19/2.55 | 2.0/1.6 | 2.7 | 53.6 | 344 | 263 | 370 | 286 | 8288 | 3484 |
| 3x240+2x120 | 3x48/2.55+2x37/2.03 | 2.2/1.6 | 2.9 | 59.4 | 406 | 310 | 436 | 341 | 10540 | 4353 |
| 3x300+2x150 | 3x60/2.55+2x37/2.25 | 2.4/1.8 | 3.1 | 65.8 | 452 | 351 | 450 | 354 | 12879 | 5323 |
